Puntos clave
TerraFlow ground following system provides a highly adaptive frame connection and adaptation to ground contours Very easy operation - only one single and double acting outlet needed 14 small diameter rotors for excellent crop turning in all conditions Compact, easy transport due to trailed concept High clearance in headland positionDescripción

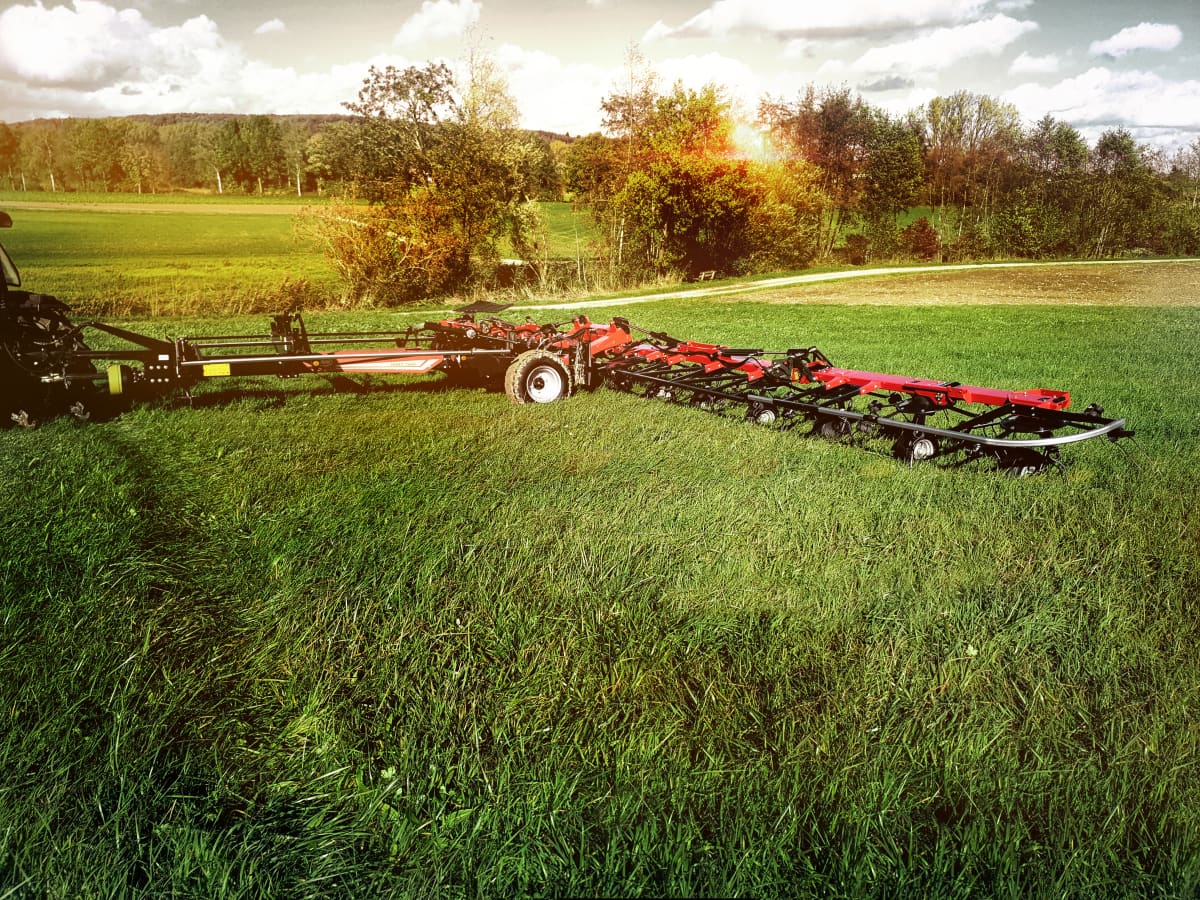

El Vicon Fanex 1564C, con un ancho de trabajo de 15,6 m, es un rastrillo henificador con un chasis de transporte especialmente diseñado para trabajos pesados. El amplio ancho de vía garantiza unas características de marcha estables durante la circulación por carretera. Las ruedas opcionales de 500 mm de ancho favorecen la protección del suelo. El innovador sistema de seguimiento del terreno TerraFlow proporciona una conexión de chasis altamente adaptable que permite que el rastrillo se mueva independientemente del bastidor portante para un seguimiento perfecto del contorno del campo. El chasis altamente flexible permite que los 14 rotores sigan con precisión los contornos del terreno. Con 14 rotores de pequeño diámetro, este rastrillo henificador está diseñado para un excelente volteo del cultivo en casi cualquier condición. Por su concepto de chasis portante, la capacidad de elevación del tractor no es un factor limitante y puede utilizarse con tractores más pequeños. La secuencia especial de plegado garantiza un despliegue rápido y seguro, incluso en condiciones accidentadas. Un control de secuencia evita daños. Gracias a las juntas, bisagras y cajas de engranajes libres de mantenimiento, el nivel de mantenimiento durante la temporada se reduce al mínimo.
Puntos clave
- Totalmente libre de mantenimiento durante la temporada, excepto la TDF y el bastidor.
- Fuerte transmisión sin mantenimiento, robustas articulaciones en U en los rotores interiores y embrague de dedos flexible HexaLink en los rotores exteriores.
- Innovador sistema TerraFlow de seguimiento del terreno entre el bastidor y el rastrillo henificador.
- Tren de rodaje de circulación para uso con tractores de baja potencia.
- Despliegue inteligente también en terrenos accidentados.
- Placa hileradora hidráulica plegable opcional para la henificación en las cabeceras.
Características

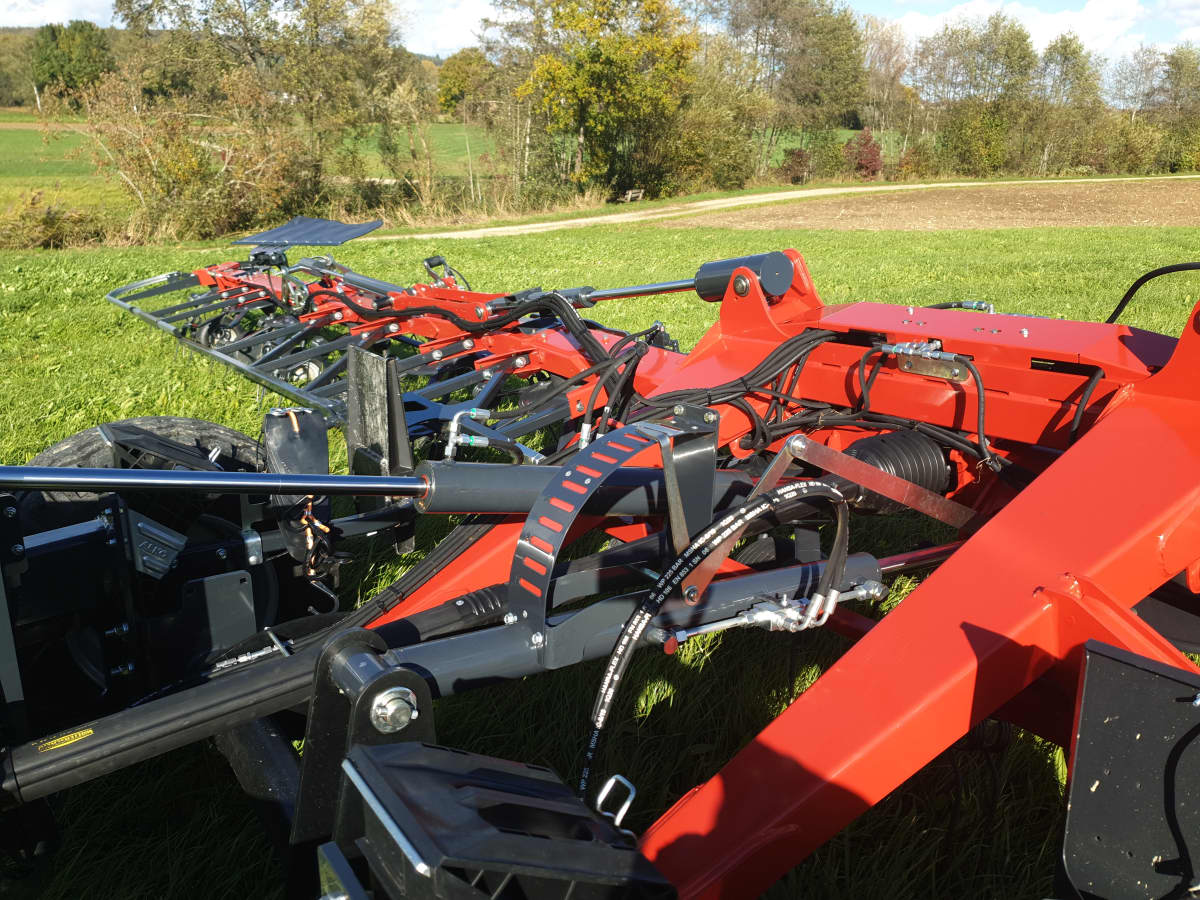

- TerraFlow is an innovative ground following system between carrier and tedder. The special geometry between transport wheels and tedder tines secure a clean pick up of crop, also in very challenging conditions.
- The tedder unit follows the chassis wheels and adapts completely independent of the movement of the carrier frame. This means tine distance to ground remains constant in all terrain, providing clean and accurate work and a uniform crop flow
- These tedders fold into a transport width below 3m and is driven like a trailer on road smoothly following behind the tractor.
- To connect the machine 40 and 50 mm towing eyes are available as well as a K80 ball coupling. The machine can be connected in high or low position of drawbar.
Super-C Tines – Even Spread,Clean Job
- Made from flat steel, the tine arms form a very compact unit with the rotor plate and utilize the force of the rotor plate for higher durability of the time arm. This makes a Fanex tine arm by far more resistant to any type of load.
- The Super-C tine can be locked in three positions to customize the pickup angle to different conditions. For heavy silages the angle can be set more aggressive and for fragile crop a gentler angle can be chosen.
- Made from 10mm shot-peened spring steel and a coil diameter of 80mm, Super-C tines add up to the most durable and flexible tine in the market.
- Super-C tine with symmetric spring tines ensures efficient pick-up and turning of the crop. Tines with same lengths has the added advantage that load is spread evenly on both tines, providing longer life time.
Simple three-way adjustment of wheel height, allows the optimum spreading angle to be achieved according to crop conditions.
- High-quality forage allows the optimum spreading angle to be achieved according to crop conditions, helping you to produce high quality forage.
- Setting the rotors to the right spreading angle will considerably improve the spreading action, and speed up the drying process.
- The mower swaths are neatly lifted by the tines and evenly spread over the full width.
- Tines glide in a more uniform frequency over the stubble, so the risk of dirt being lifted by the tines is minimized.
Solid Design- Maintenance Free Operation

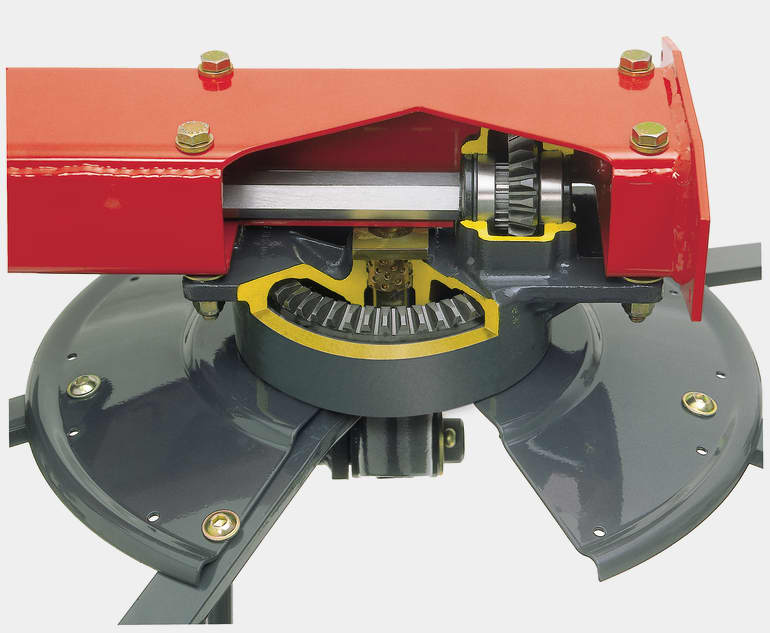

- Gearbox does not serve as part of the main frame, but is bolted on. No strain is transmitted to the gearbox.
- Permanent oil bath lubrication – no maintenance of the gearbox required.
- Dust and water proof gearbox design. No corrosion.
- Double bearing on both sides of the drive shaft for highest durability to withstand the most severe conditions.
- Crown wheel and pinion positioned in one housing for very reliable drive.
- Powered by maintenance-free driveline and gearboxes.
- Reliable driveline with a strong combination of maintenance free universal joints and HexaLink finger clutch.
- Hinges are connected with strong maintenance-free roller bearings for extended longevity and stability of the connection points.
Características técnicas
Características técnicas
Descargar catálogo| Modelos Fanex ProLine | 1564C | |
|---|---|---|
| Anchura de trabajo (m) | 15.60 | |
| Número de rotores | 14 | |
| Número de púas/rotor | 6 | |
| Anchura de transporte (m) | 2.98 | |
| Longitud de transporte (m) | 6.40 | |
| Altura de almacenamiento (m) | 2.89/3.20* | |
| Capacidad teor. (ha/h) | 12.5 |
* Altura con la lona de bordeado con plegado hidráulico
Características técnicas
Características técnicas
Descargar catálogoFanex |
Working width |
Rotors/Tines |
Weight |
1564C |
15.60m |
14/6 |
3410kg |
