Vicon RO-EDW GEOSPREAD iDC

When running IsoMatch GEOCONTROL in addition to GEOSPREAD you can set the RO-M/RO-EDW/RO-XXL GEOSPREAD (iDC) more accurately. The working width will automatically be adjusted to suit the overlap and coverage using a GPS positioning system. For example, when driving in a wedged or irregular shaped field, GEOSPREAD will start to decrease the working width step by step. GEOSPREAD is using the section control function of the IsoMatch GEOCONTROL software which is in the IsoMatch Tellus PRO or IsoMatch Tellus GO+ terminal. The spreader working width is divided into a minimum of 1 metre sections (max. 45 sections on RO-XXL GEOSPREAD (iDC), max. 54 sections on RO-EDW GEOSPREAD (iDC) and max. 33 sections on RO-M GEOSPREAD). Not only the spreading width is adjusted, the application rate (kg/min) is also adjusted automatically to match the revised spreading width. This combination of working width and application rate adjustment makes the GEOSPREAD system extremely accurate, with minimum influence on the coefficient of variation of the spread pattern

The Advantages:

• Quick and accurate spreading, due to the actuators being directly connected to the discharge point. No linkages.
• Automatic, in-field, disc RPM management to maintain a perfect spreading pattern and optimise border spreading in combination with the TrimFlow.
• Section control with 1 metre sections (depending on the terminal functionality)
• Easy operation: no need to step off the tractor to adjust the working width
• 100% ISOBUS compatible for easy operation
• Automatic start/stop with GPS on headlands possible

With the AutosetApp you have always the most up to date settings for your weighing spreader available. There are two ways to make use of the AutosetApp;

RO-M/RO-EDW/RO-XXL GEOSPREAD (iDC) with Vicon Sync

Via the AutosetApp functionality within the Vicon SpreadApp you can set-up your GEOSPREAD spreader in combination with a Vicon Sync, via your mobile device.

Through the Bluetooth connection, operators can seamlessly connect the GEOSPREAD spreader to a mobile device, such as a smartphone or tablet, using the AutosetApp functionality. This allows for the efficient transfer of spreader settings and presets directly from the mobile device to the spreader.

The benefits of this connectivity include error-free storage and transfer of spreading jobs. Additionally, the integrated filling calculator provides an exact measurement of the fertiliser needed to complete the spreading job, while real-time weight updates in the hopper are displayed directly on the App during filling, improving efficiency and accuracy.

RO-M EW/RO-M W PRO/RO-EDW and all GEOSPREAD models without Vicon Sync

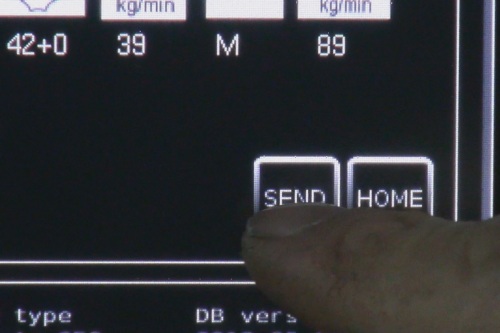

The AutosetApp is an App (software application) that is also available on the IsoMatch Tellus PRO or IsoMatch Tellus GO+ terminal. The AutosetApp is standard integrated into the IsoMatch GEOCONTROL software. This App connects the terminal directly with the GEOSPREAD weighing spreader and will automatically adjust the spreader according to the settings entered into the App. The AutosetApp will also work in combination with the CL-EW, W PRO and TL, with the exception being for those spreaders the discharge point (letter setting) still needs to be adjusted manually on the spreader itself.

For even more precision

MULTIRATE (Variable Rate Application) applies multiple rates within a working width.

In order to spread the right amount of fertiliser at a specific place in a field there is a need to have a different rate within the working width. Depending on the field variation and the size of the grid of the variable application map, input of 2, 4, 6 or 8 rate sections can be used. This means a more accurate application of nutrients to have a better nutrient efficiency, better yield and reduce costs.

With a Vicon GEOSPREAD spreader you invest in 100% ISOBUS compatibility for easy plug and play with the IsoMatch Tellus PRO or any other AEF certified terminal. In just some steps with this combination you are ready to use MULTIRATE. You have to convert a satellite or soil map into an ISO-XML file. Download the Variable Rate Map into the terminal and you are ready to spread with MULTIRATE with 2 up to 8 rates.

• No impact, no fragmentation, no dust: Central release point, smooth acceleration and centrifugal force accelerates fertiliser up to disc speed before it reaches the vane.

• Accurate spreading pattern: A double overlap spreading pattern gives unrivalled accuracy. The 8 vanes per discs are ensuring a continuous flow of fertiliser to the field. This is important for high capacity spreading and forward speed.

• Minimal wind influence, maximum tolerance: Flat discs and a horizontal flow of fertiliser give a symmetrical spreading pattern.

• Consistent spreading pattern: Eight vanes per disc, eight sectors per revolution give an equal distribution. Double overlap spreading pattern.

• Guaranteed accuracy on slopes: guaranteed accuracy on slopes. The fertiliser always contacts the vanes at the same point, also on slopes and travels the complete length of the vane.

• Continuous dynamic "online - calibration" with high frequency communication signal.

• Vicon's unique reference sensor technology: all negative influences are automatically corrected and eliminated, ensuring utmost spreading accuracy even on hill sides. The Vicon reference sensor gives you absolute accuracy, because every kilo counts!

• Load cells in combination with the unique reference sensor:
  - Auto calibrating and continuous weighing system
  - Automatic correction on slopes
  - Automatic correction of shocks, even on rough terrain
  - Automatic speed related dosing system
  - No calibration test needed

• Highest accuracy in all conditions: even spreading quality guaranteed! Save costs and increase quality!

• The compact FlowPilot 'dashboard' gives you considerably simplified accurate setting and adjustment of application rates. Two hydraulically operated metering plates, each with three discharge openings ensure an equal fertiliser flow from the hopper to the spreading discs.

• The R&D department of the Vicon spreaders has its own spreader competence centre in order to allow continuous testing throughout the year. All tests are carried out according to the strictest international standards and quality requirement.

• The key to accurate spreading is matching fertiliser quality and litre weight with the spreading charts as close as possible. The Vicon RotaFlow checklist helps you to ensure consistent accuracy in all field conditions:
  1. Select fertiliser type
  2. Determine granule size and distribution
  3. Determine litre weight

• Direct access to the most recent test results at: www.viconspreadingcharts.com or download the spreading charts application via the App Store or get it on Google Play

• Vicon offers the TrimFlow system or manual/hydraulic border spreading plate for border spreading. The TrimFlow can be accurately set for all types of fertiliser and for all working widths. Operation is easy, no need to leave the tractor seat. For the RO-M GEOSPREAD, RO-XL, RO-EDW and RO-XXL GEOSPREAD (iDC) models the TrimFlow can even be fitted on the left- and right-hand side of the spreader.

• With one-side boundary spreading the tractor is driven approximately 2 metres from the field border.

• With boundary track spreading the tractor is driving in the first tramline and is spreading to the border. The distance to the border is the half of the working width.

• The Border Spreading Indicator (BSI) on the standard weighing spreaders (RO-M EW, RO-M W PRO, RO-EDW) indicates which border spreading device is active. For the GEOSPREAD machines this is integrated in the electronics and the active device will be displayed on the control terminal in the cab.

• A Central Hydraulic Drive is as option available for spreading without PTO shaft, for the RO-XL, RO-EDW and RO-EDW/RO-XXL GEOSPREAD.

• Easy to assemble aluminum hopper extensions are available to increase hopper capacity.

• An easy to fold in and out hopper cover is as option available. Simple to fit! It can be the manual folded hopper cover or the electrical version which can be controlled from the tractor cab.

• Left/right shut off valve for spreading at half working widths is optional available.

• To ensure a consistent flow when spreading low quantities, the RotaFlow system is equipped with a fine application kit. Ideal for spreading low quantities, seeds and slug pellets.

• Delta shaped heavy duty grids are standard equipment of the RO-XL, RO-EDW, RO-EDW/RO-XXL GEOSPREAD (iDC) spreaders.

• Central gear box with 2 input shafts for high and low disc speed settings is standard equipment of the RO-XL, RO-EDW, RO-EDW/RO-XXL GEOSPREAD (iDC) spreaders.

• Hopper emptying kit is optional available to easy get the last fertiliser out of your hopper.

• Easy calibration is done with the optional calibration container.

• Long lifetime LED lighting set is standard equipment for the RO-XL, RO-EDW, RO-EDW and RO-XXL GEOSPREAD (iDC) spreaders.

• The mud guards (option) protect the spreading disc against mud, water etc.

Increase accuracy
The front-rear combination will not only increase the total capacity up to 6000 or 7000 litres, but also the efficiency and nutrition accuracy will be increased by spreading two different applications in one pass. Instead of spreading a blend it is possible to apply two different fertiliser types with different physical properties, both with a correct setting to get a perfect nutrient accuracy and spreading pattern. As a result, there will be an increased yield and more efficient use of the applied fertiliser.

Perfect weight balance
With a spreader in the rear and one in the front there is an increase in capacity and at the same time a perfect weight balance on the tractor. This means that there is less ground pressure, which results in less soil compaction. In case there is no PTO shaft available at the front of the tractor, the central hydraulic driveline on the GEOSPREAD spreaders can be used. The TrimFlow border spreading device can be added on the left- and right-hand side for spreading borders and headlands.

Maximise productivity
The different GEOSPREAD models, with different hopper capacities, can be combined in the front and the rear. On the ISOBUS terminal each disc spreader can be selected, and the correct setting can easily be entered. Section control will automatically switch on and off sections on both spreaders to minimise overlap. With the Variable Rate Application on all the Vicon GEOSPREAD spreaders it is possible to automatically adjust the application rate separately from the front and rear spreader. For even more precision MULTIRATE applies multiple rates within a working width, independently from the front and rear spreader.

For an optimal result with high quality vanes.

Increased use of very hard fertilisers with sharp edges at high flow rates will shorten the lifetime of the vanes. Worn out vanes are creating an unreliable spreading pattern, causing uneven nutrient distribution and potential yield loss.

XHD wearing resistant vanes stand for a long life time and reliable machine. The surface coating of the lift vanes was introduced for this purpose.

The XHD lift vanes are made out of standard Duplex stainless steel, treated with Chromium carbide coating layer to increase their wearing resistance. The Chromium carbide is an extremely hard and corrosion resistant material. It's heated to very high temperatures and sprayed on the vane to create a protective layer. The Chromium carbide increases the wearing resistance, but has no influence on the spreading pattern. The XHD lift vanes provide a high quality spreading pattern and durability for the farmer.
